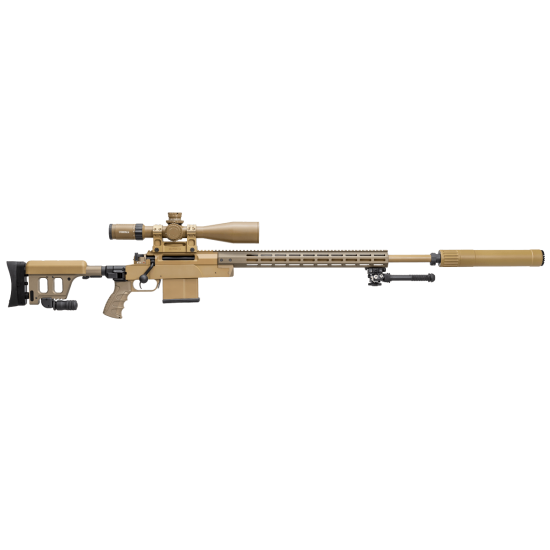

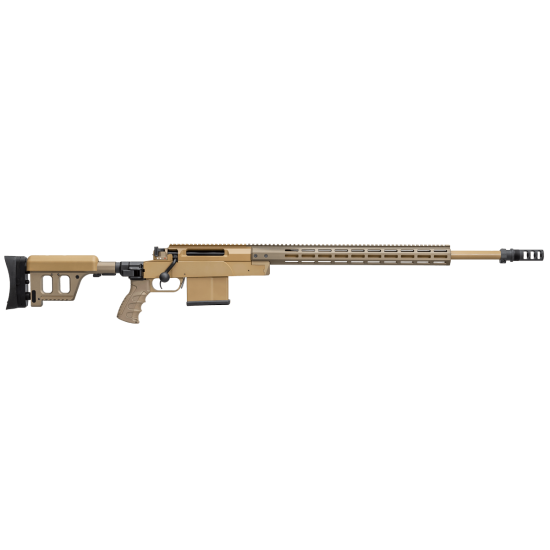

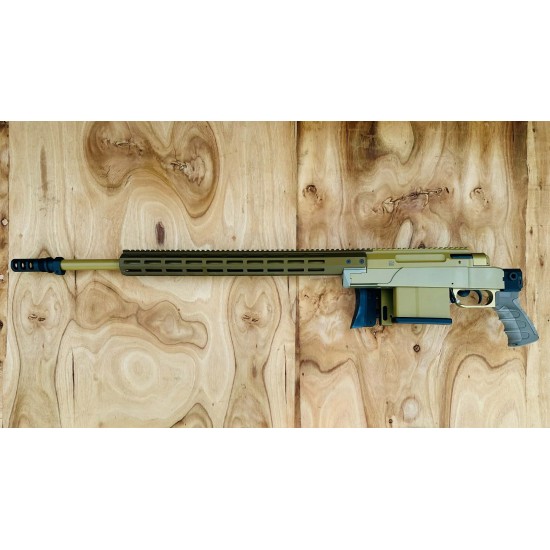

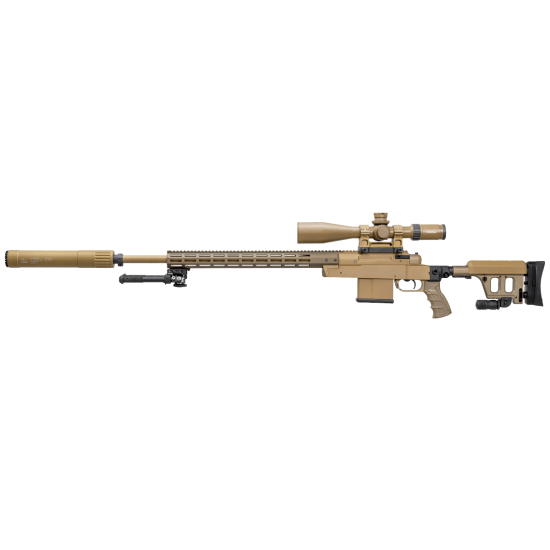

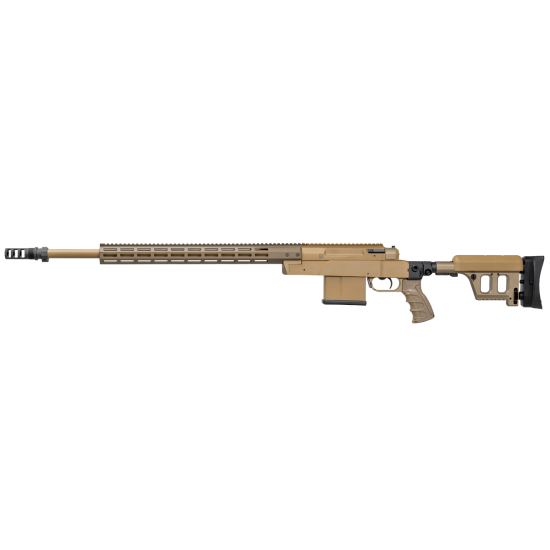

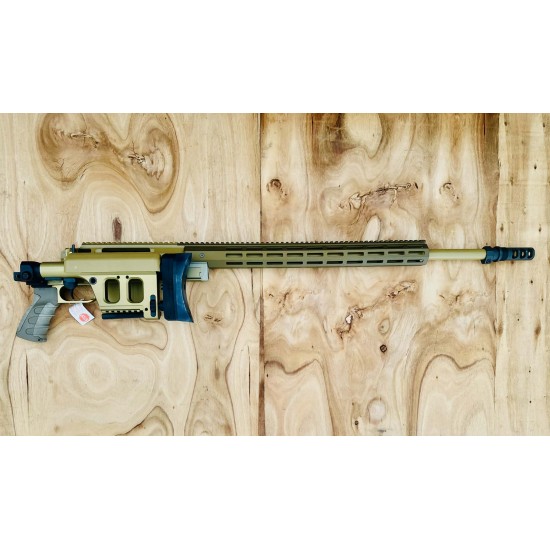

Haenel HLR-Pro 338LM

Haenel HLR-Pro 338LM. Supressor sold se[eratly.

The HLR – Haenel Long Range – is offered by Haenel in the two variants Basic and Pro – depending on the level of ambition and intended use. The HLR Basic is available in the long range calibers .308 Win., 6.5 Creedmoor and .338 Lapua Magnum with a retractable buttstock. The HLR 308 Basic is also available as a compact version with a short barrel.

The PRO version

The HLR Pro always has a folding buttstock instead of a retractable stock and a muzzle brake as standard. It is available in the precision calibers .308 Win. and .338 Lapua Magnum – in .308 caliber also available as a compact version with short barrel.

Technical Data 338lM

Caliber8,6 x 70 mm (.338 Lapua Magnum

)Twist10″Overall length1275 mm (with folded buttstock: 1020 mm)

Width75 mm (with folded buttstock: 90 mm)

Height185 mm (without scope)

Barrel length690 mmBarrel diameter22 mm

Muzzle brake3-chamber muzzle break

Weightapprox. 6,8 kg (without accessories)

Trigger10–20 N (adjustable double stage trigger; adjustable in length, pull and weight)

 Magazine capacity10 rounds

Safety3 stages firing pin safety

ButtstockFoldable and tool-free adjustable buttstock

Mounting bar / handguardIntegrated NAR rail (Weaver) / handguard with NAR and M-Lok

ColoursSand (similar RAL 8000)

Manual

https://www.cg-haenel.de/download/Dokumente/Bedienungsanleitung-RS9-HLR338-DE.pdf
